Use Case Diagrams for Product Owners: A Beginner’s Quick Start to Visualizing User Value

Product ownership is fundamentally about understanding the “why” behind every feature and ensuring that technical work delivers tangible business value. While user stories and backlog items are standard tools for managing work, they often lack a high-level view of how users interact with the system as a whole. This is where a Use Case Diagram becomes an invaluable asset.

For a Product Owner, visualizing the ecosystem of interactions helps clarify scope, identify missing requirements, and facilitate clearer communication with development teams and stakeholders. This guide provides a comprehensive overview of how to leverage these diagrams effectively without getting bogged down in overly technical modeling methodologies.

📋 What is a Use Case Diagram?

A Use Case Diagram is a visual representation of the functional requirements of a system. It maps out the interactions between external entities (called Actors) and the system itself (represented by Use Cases). Unlike a flowchart, which details the step-by-step logic of a process, a Use Case Diagram focuses on who does what within the context of the system.

For Product Owners, this distinction is critical. It shifts the focus from implementation details to user goals. By defining the boundaries of the system, you create a shared understanding of what is included in a release and what remains outside the scope.

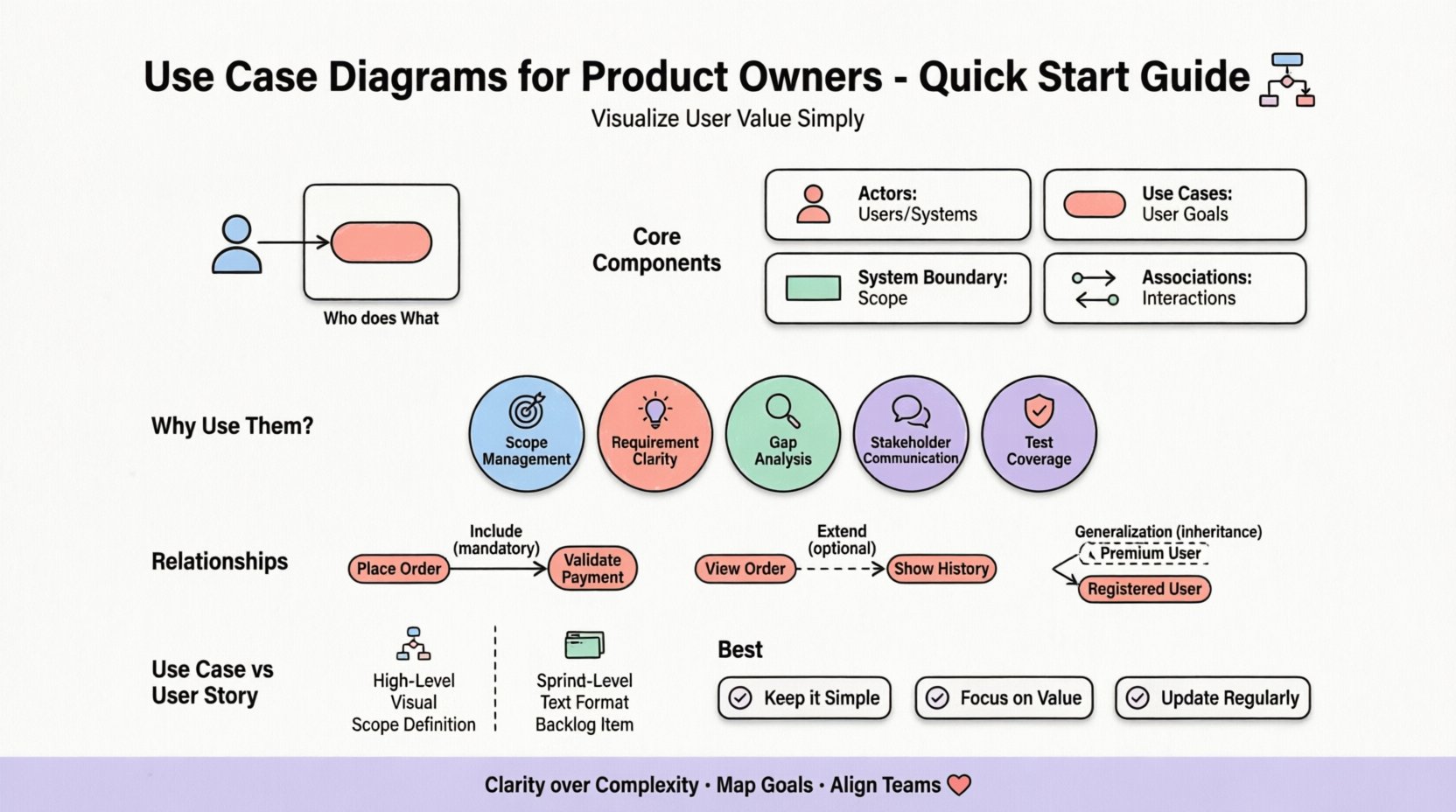

🧩 Core Components of the Diagram

To build a meaningful diagram, you must understand the fundamental building blocks. These components remain consistent regardless of the tool used to create them.

• Actors: Represented by stick figures or icons. An actor is anyone who interacts with the system. This could be a human user (e.g., “Customer”, “Admin”), another system, or a third-party service.
• Use Cases: Represented by ovals or ellipses. Each oval represents a specific goal or function the actor can achieve (e.g., “Place Order”, “Generate Report”, “Update Profile”).
• System Boundary: A rectangle that encloses the use cases. Everything inside is part of the system; everything outside is external.
• Associations: Lines connecting actors to use cases. This indicates that the actor initiates or participates in that specific function.
• Relationships: Lines connecting use cases to other use cases to show dependencies (such as inclusion or extension).

🚀 Why Product Owners Need Them

While developers might create detailed sequence diagrams or class diagrams, a Product Owner benefits from the high-level abstraction of a Use Case Diagram. Here is why this specific visualization supports your role:

• Scope Management: It is easier to identify features that fall outside the system boundary. This helps in saying “no” to scope creep during planning sessions.
• Requirement Clarity: It forces you to define user goals clearly before breaking them down into tasks. If an actor cannot achieve a goal, the requirement might be flawed.
• Gap Analysis: By mapping all actors and their goals, you can spot missing interactions. For example, you might realize there is no “Cancel Subscription” use case for the “Admin” actor.
• Stakeholder Communication: Business stakeholders often find diagrams easier to understand than text-heavy requirement documents. It provides a common language for discussions.
• Test Coverage: QA teams can use the diagram to ensure every actor-goal combination is tested, reducing the risk of regression bugs.

🛠️ How to Create Your First Diagram

Creating a diagram does not require advanced technical skills. It requires a structured approach to gathering information. Follow these steps to build a foundational diagram for your product.

1. Identify the Actors

Start by listing everyone who interacts with your product. Avoid technical roles (like “Database”) unless the database is an external system triggering actions. Focus on human roles and external systems.

• Primary Actors: Those who initiate the action (e.g., “Registered User”).
• Secondary Actors: Those that provide data or services in the background (e.g., “Payment Gateway”).

2. Define the System Boundary

Draw a box. Ask yourself: “What is the core functionality we are building right now?” Anything outside this box is either a dependency or out of scope. Be strict here. If a feature is planned for a future phase, place it outside the box or in a separate diagram.

3. Map the Use Cases

For each actor, list the goals they want to achieve. Use verb-noun phrases for clarity.

• ❌ Bad: “Login”
• ✅ Good: “Authenticate User”
• ❌ Bad: “Search”
• ✅ Good: “Search Inventory”

4. Draw the Connections

Connect actors to their corresponding use cases using straight lines. If a use case is shared by multiple actors, ensure the lines reflect that correctly.

🔗 Understanding Relationships

Not all use cases exist in isolation. They often relate to one another. Understanding these relationships prevents redundancy and clarifies logic.

Include Relationship (<<include>>)

This means one use case must perform another use case to complete its function. It is a mandatory dependency.

• Example: “Place Order” includes “Validate Payment”. You cannot place an order without validating payment.

Extend Relationship (<<extend>>)

This means one use case adds optional behavior to another under specific conditions. It is not always executed.

• Example: “View Order” extends “Show Order History”. This only happens if the user has previous orders.

Generalization (Inheritance)

This is used when a specific actor or use case is a specialized version of a general one.

• Example: “Premium User” is a type of “Registered User”. A “Premium User” inherits all capabilities of a “Registered User” but may have additional ones.

Relationship Type	Symbol	Meaning	Example
Association	Solid Line	Actor interacts with Use Case	Admin creates Report
Include	Dashed Arrow <<include>>	Mandatory step within another	Login requires Validate Credentials
Extend	Dashed Arrow <<extend>>	Optional step under condition	Apply Discount extends Checkout
Generalization	Solid Triangle Arrow	Specialization of Actor/Use Case	Guest User is a type of Visitor

⚖️ Use Case vs. User Story

Product Owners often confuse Use Cases with User Stories. While both describe functionality, they serve different purposes in the lifecycle.

• Granularity: Use Cases are broader and describe a complete goal. User Stories are smaller slices of functionality designed for a single sprint.
• Format: Use Cases are visual and structural. User Stories follow the “As a… I want… So that…” format.
• Timing: Use Cases are often created during the discovery phase to define scope. User Stories are written during refinement to define acceptance criteria.

Feature	Use Case	User Story
Focus	System Functionality & Goals	User Value & Acceptance
Level	High-Level / Macro	Low-Level / Micro
Output	Diagram	Backlog Item
Best Used	Defining Scope & Architecture	Planning & Sprint Execution

🎨 Best Practices for Product Owners

To ensure these diagrams remain useful and not just decorative artifacts, adhere to these guidelines.

• Keep it Simple: Avoid cluttering the diagram. If it becomes too complex, split it into multiple diagrams (e.g., one for “Admin”, one for “Customer”).
• Focus on Value: Do not diagram internal system processes that the user does not see (like “Database Write” unless it impacts the user directly). Focus on user value.
• Keep it Updated: A diagram is only as good as its current state. Update it whenever requirements change significantly.
• Collaborate: Do not create the diagram in isolation. Review it with developers and testers. They will spot logical gaps you might miss.
• Use Standard Notation: Stick to standard symbols so anyone familiar with the notation can read it without a legend.

🚫 Common Pitfalls to Avoid

Even experienced Product Owners can make mistakes when modeling interactions. Watch out for these common errors.

• Mixing UI with Logic: Do not include buttons or screen layouts in the diagram. The diagram is about functionality, not appearance.
• Too Many Actors: If you have more than 5 or 6 actors, the diagram becomes unreadable. Consider grouping them (e.g., “External Systems”).
• Over-Engineering: Do not use complex relationships like multiple levels of generalization unless absolutely necessary. Simplicity aids understanding.
• Ignoring Non-Functional Requirements: While Use Cases focus on function, remember that performance and security are often implied by the actors (e.g., “Security System” actor).
• Static Documentation: Do not treat the diagram as a one-time deliverable. It should evolve with the product.

🔄 Integrating into the Agile Workflow

In an Agile environment, documentation must be lightweight but effective. Here is how a Use Case Diagram fits into the sprint cycle.

Discovery Phase

During the initial discovery, create a “Vision Level” diagram. This captures the major goals of the product. It helps align stakeholders before any code is written.

Refinement Phase

Before a backlog item enters the sprint, ensure it maps back to a Use Case. This ensures the story contributes to a defined user goal. If a story has no parent Use Case, it might be an orphan requirement.

Sprint Planning

Use the diagram to explain context to the development team. If a feature involves a complex interaction, refer to the diagram to explain the boundaries. It reduces ambiguity during the estimation session.

Retrospective

If scope creep occurs, refer back to the diagram. It provides objective evidence of what was originally scoped. This helps in negotiating changes with stakeholders.

📈 Measuring Success

How do you know if using Use Case Diagrams is working for your team? Look for these indicators.

• Reduced Rework: Fewer instances where features are built incorrectly because the interaction model was misunderstood.
• Faster Onboarding: New team members understand the system architecture more quickly.
• Better Stakeholder Buy-in: Business leaders feel more confident in the roadmap because the value flow is visible.
• Clearer Acceptance Criteria: QA tests align better with the defined goals, leading to fewer bugs in production.

🔍 Deep Dive: Analyzing User Value

The ultimate goal of a Product Owner is to maximize user value. Use Case Diagrams are a direct tool for this analysis. When you map a Use Case, you are essentially mapping a value proposition.

For every use case you add, ask:

• Who is the actor?
• What is the business goal?
• Is this value delivered immediately or is it part of a larger journey?
• Can this be automated to reduce friction?

Consider the “Cancel Subscription” example again. If you find this use case exists but is hard to find in the UI, the diagram highlights a disconnect between the system’s capability and the user experience. This insight drives UX improvements.

🌐 Scalability and Maintenance

As your product grows, the diagram will grow. Managing this growth is essential.

• Modularization: Split the diagram by subsystem. For example, have one diagram for “Billing”, one for “User Management”, and one for “Reporting”.
• Version Control: Treat the diagram file like code. Check it into version control. This allows you to see how the system scope has evolved over time.
• Linking: If your tool allows, link the Use Cases to your backlog items. This creates a traceability chain from high-level goal to specific task.

💡 Final Thoughts

Visualizing user value is not just about drawing boxes and lines. It is about thinking clearly about the relationship between the user and the system. For a Product Owner, a Use Case Diagram serves as a strategic tool that bridges the gap between business intent and technical execution.

By mastering the basics of actors, use cases, and relationships, you equip yourself with a language that clarifies scope, manages expectations, and ensures that the team builds the right things. Start small, keep it simple, and let the diagram evolve as your product matures.

Remember, the goal is clarity, not complexity. Use these diagrams to illuminate the path for your team and your stakeholders, ensuring that every line of code contributes to a defined user goal.

📚 Summary of Key Takeaways

• Definition: A Use Case Diagram maps actors and their goals within a system boundary.
• Actors: Identify all external entities interacting with the system.
• Relationships: Understand Include, Extend, and Generalization to model logic accurately.
• Benefits: Improves scope clarity, communication, and gap analysis.
• Integration: Use in discovery and refinement phases to align backlog items with user goals.
• Maintenance: Keep diagrams updated and modular as the product scales.

Adopting this approach ensures that your product vision remains grounded in user reality, driving consistent value delivery across all sprints and releases.
