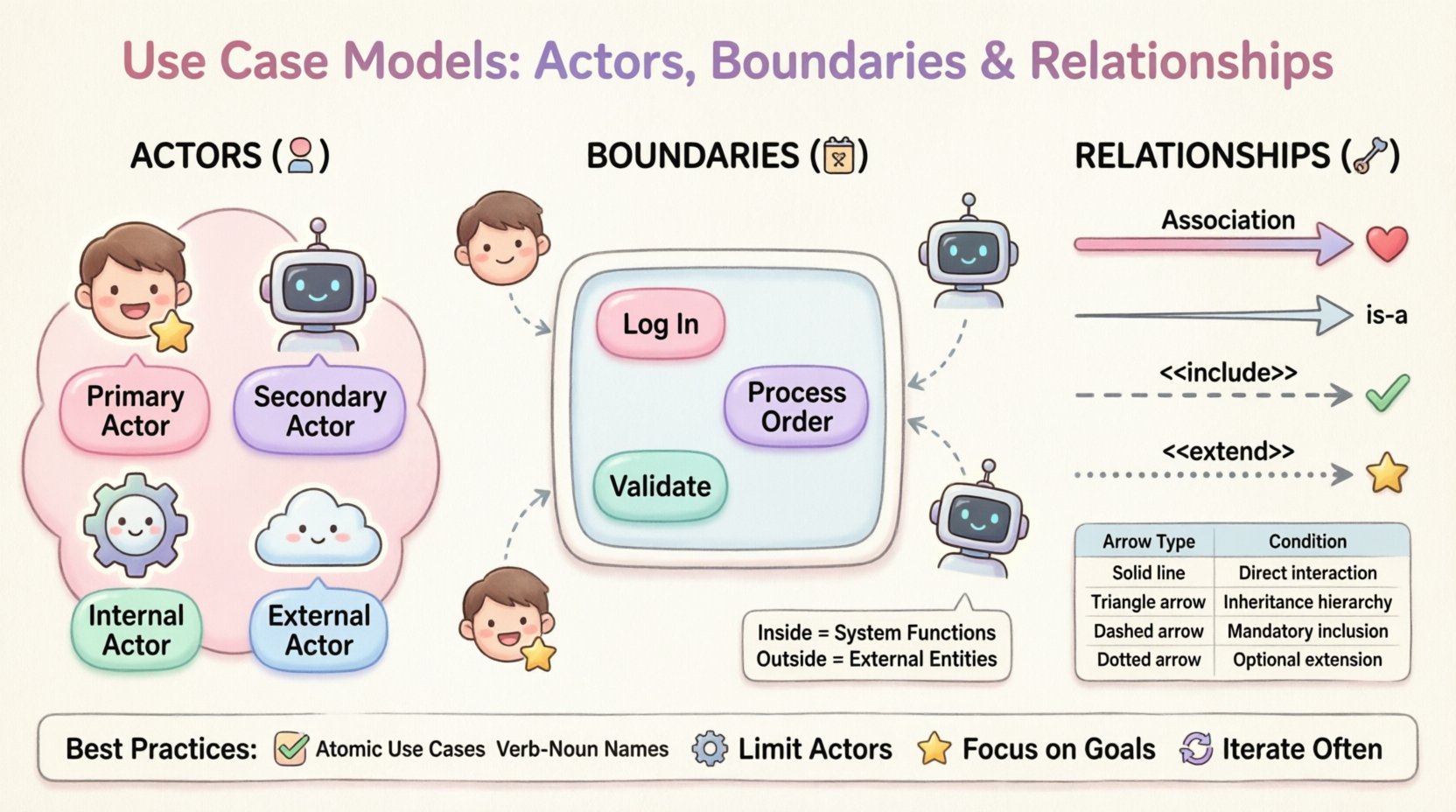

Component Breakdown: Understanding Actors, Boundaries, and Relationships in Use Case Models

System modeling is a critical phase in software development and requirements engineering. It provides a structured way to visualize how users interact with a system and what functions the system performs. Among the various modeling techniques available, the Use Case Diagram stands out for its simplicity and effectiveness in capturing functional requirements. This guide provides a detailed examination of the three core components of a Use Case Model: Actors, Boundaries, and Relationships. By understanding these elements, teams can create clearer specifications that align technical implementation with user needs.

Effective modeling requires precision. Ambiguity in diagrams often leads to misinterpretation during the development phase. This article explores the mechanics of Use Case modeling without relying on specific tools or proprietary platforms. The focus remains on the theoretical and practical application of the concepts.

👥 Defining Actors in System Modeling

An actor represents a role played by an entity that interacts with the system. It is crucial to understand that an actor is not necessarily a person. While human users are the most common examples, actors can be other systems, hardware devices, or even time-based triggers. Identifying the correct actors is the first step in defining the scope of interaction.

Types of Actors

Actors are generally categorized based on their relationship to the system and their level of interaction. Distinguishing between these types helps in organizing the diagram logically.

• Primary Actors: These are the users or systems that initiate the interaction to achieve a specific goal. For example, in an online shopping system, the customer is a primary actor because they initiate the purchase process.
• Secondary Actors: These actors assist the system in performing a function but do not initiate the use case. They often provide data or services required by the primary flow. In the shopping example, a payment gateway system acts as a secondary actor.
• Internal Actors: Sometimes referred to as system components, these actors are part of the broader architecture but act as external entities relative to the specific system boundary being modeled.
• External Actors: These exist outside the system boundary entirely. They could be third-party services, regulatory bodies, or human operators.

When defining actors, it is best to focus on the role rather than the specific individual. Instead of labeling an actor as “John Doe,” label it as “Administrator.” Roles remain consistent even if the personnel changes, ensuring the model remains valid over time.

📦 Establishing System Boundaries

The system boundary is a rectangular box that encloses all the use cases belonging to the system under consideration. It clearly distinguishes what the system does from what lies outside its control. This visual cue is essential for scope management.

Inside vs. Outside

Element	Location Relative to Boundary	Responsibility
Use Cases	Inside	Functions performed by the system
Actors	Outside	Entities interacting with the system
Relationships	Crossing	Communication lines between actors and use cases

Defining the boundary is often more challenging than identifying actors. If a boundary is too wide, the model becomes cluttered and loses focus. If it is too narrow, necessary dependencies may be excluded. A good rule of thumb is to include only functions that are directly controlled by the system developers or stakeholders.

System Context

The boundary also defines the context of the system. Anything outside the box is considered an external dependency or an environmental factor. This distinction is vital when analyzing failure points. If a secondary actor fails, does the system fail, or can it handle the error? The boundary helps answer these questions by isolating the system’s internal logic from external variability.

🔗 Modeling Relationships

Relationships connect actors to use cases and use cases to other use cases. These lines define the flow of information and control. There are four standard types of relationships used in Use Case modeling. Understanding the distinction between them prevents logical errors in the design.

1. Association

An association is a solid line connecting an actor to a use case. It indicates that the actor interacts with the use case. This is the most basic relationship.

• Direction: While often drawn without arrows, associations can imply directionality based on who initiates the action.
• Multiplicity: An actor might be associated with one or many use cases. Similarly, a use case might be initiated by one or many actors.
• Usage: Use this to map primary interactions. If a user can “Log In,” draw a line from the User actor to the Log In use case.

2. Generalization (Inheritance)

Generalization represents an “is-a” relationship. It allows for the reuse of behavior. In Use Case modeling, it is used when one actor or use case is a specialized version of another.

• Actor Generalization: If a “Manager” is a specialized type of “Employee,” the Manager actor can inherit the relationships of the Employee actor. This reduces redundancy.
• Use Case Generalization: If “Pay with Credit Card” is a specific way of “Make Payment,” the specific use case inherits the behavior of the general one. This is useful when multiple variations of a process exist.

3. Include

The include relationship is used to modularize behavior. It indicates that one use case incorporates the behavior of another use case as a mandatory step. The included use case is essential for the base use case to complete.

• Keyword: Typically denoted by the keyword <<include>>.
• Trigger: The base use case always calls the included use case.
• Example: The “Place Order” use case might include “Validate Inventory.” The order cannot be placed without checking inventory. Therefore, the relationship is mandatory.
• Benefit: It promotes reusability. If “Validate Inventory” is needed by three different use cases, it is defined once and included in all three.

4. Extend

The extend relationship represents optional behavior. It indicates that a base use case can be extended by another use case under specific conditions. Unlike include, the extended behavior is not required for the base use case to function.

• Keyword: Typically denoted by the keyword <<extend>>.
• Trigger: The extension happens only if a specific condition is met.
• Example: The “Place Order” use case might be extended by “Apply Discount.” The discount is only applied if the user has a coupon code. The order can still be placed without the discount.
• Direction: Note that the arrow points from the extending use case to the base use case, which is the reverse of the include relationship.

📊 Relationship Types Summary

Relationship	Arrow Direction	Condition	Use Case
Association	None / Bidirectional	Interaction	Actor initiates action
Generalization	Base to Derived	Inheritance	Specialization of behavior
Include	Base to Included	Mandatory	Mandatory sub-function
Extend	Extension to Base	Optional	Conditional sub-function

✅ Best Practices for Clarity

Creating a Use Case model is not just about drawing boxes and lines; it is about communication. The diagram must be understood by developers, stakeholders, and testers. Adhering to best practices ensures the model remains a useful reference throughout the project lifecycle.

• Keep Use Cases Atomic: Each use case should represent a single, complete unit of functionality from the actor’s perspective. Avoid combining unrelated actions into one use case. If a use case becomes too complex, break it down.
• Use Action-Oriented Naming: Name use cases as verb-noun phrases. For example, “Process Refund” is better than “Refund.” This clarifies the action being performed.
• Limit Actor Count: A diagram with too many actors becomes unreadable. If there are many similar actors, consider using a generalization relationship to group them.
• Focus on Goals: Use cases describe how an actor achieves a goal. Avoid modeling internal system processes that the actor cannot see. Stick to the external view of the system.
• Iterate Regularly: Use Case models are rarely perfect on the first draft. As requirements evolve, update the diagram. It should be a living document.

⚠️ Common Pitfalls to Avoid

Even experienced modelers can fall into traps that reduce the value of the diagram. Being aware of common mistakes helps maintain quality.

• Confusing Include and Extend: This is the most frequent error. Remember: Include is mandatory (must happen), Extend is optional (might happen). If you are unsure, ask if the base use case can complete without the second use case.
• Placing Actors Inside the Boundary: Actors must always exist outside the system box. If an actor is inside, it is likely a component of the system, not an external entity.
• Overlapping Functionality: If two use cases do the exact same thing, merge them. Redundancy confuses the reader and complicates maintenance.
• Ignoring Non-Functional Requirements: While Use Case diagrams focus on functionality, keep in mind that constraints (like performance or security) often influence the design. Document these separately if they are not part of the flow.
• Vague Descriptions: Do not rely solely on the diagram. Use cases should be accompanied by textual descriptions that detail the preconditions, postconditions, and main flow of events.

📝 Final Considerations

The value of a Use Case model lies in its ability to bridge the gap between business needs and technical implementation. It serves as a contract between stakeholders and the development team. By meticulously defining actors, boundaries, and relationships, teams reduce the risk of misunderstanding requirements.

Remember that modeling is a tool for thinking, not just for documentation. The process of drawing the diagram often reveals gaps in logic or missing requirements before any code is written. This proactive approach saves time and resources in the long run.

As you apply these concepts, focus on clarity and consistency. A well-structured Use Case model is a testament to a well-understood system. It facilitates communication, guides testing efforts, and ensures that the final product delivers the intended value to its users.

Continuously refine your diagrams based on feedback. Software development is iterative, and so should be your modeling process. By maintaining high standards in your diagrams, you contribute to a robust and reliable software engineering workflow.
