Quick Reference: The Essential Use Case Diagram Symbols Every Product Manager Must Know

Communication lies at the heart of product development. Whether you are defining scope, aligning stakeholders, or guiding engineering teams, clarity is paramount. Visual models serve as a universal language, bridging the gap between technical constraints and business goals. Among these tools, the Use Case Diagram stands out as a foundational instrument for mapping system functionality from a user perspective. For product managers, understanding these diagrams is not merely about technical literacy; it is about precision in requirements and scope management.

This guide breaks down the symbols, relationships, and implications of Use Case Diagrams specifically tailored for product management contexts. We will explore how these visual elements translate into actionable requirements, ensuring that every feature definition is clear, testable, and aligned with user needs. Let us examine the core components that drive effective system modeling.

Understanding the Foundations of Use Case Modeling 🧱

A Use Case Diagram visualizes the interactions between users (or systems) and the software being built. It captures what the system does, not how it does it. This distinction is critical for Product Managers. It allows you to focus on value delivery and user goals without getting bogged down in implementation details.

These diagrams help in:

• Scope Definition: Clearly delineating what is inside the system and what is outside.
• Requirement Gathering: Identifying all necessary interactions to satisfy user goals.
• Communication: Providing a visual reference for stakeholders who may not read technical specifications.
• Testing: Serving as a baseline for defining test cases and acceptance criteria.

Core Symbols: The Building Blocks 🛠️

Every diagram is constructed from a specific set of symbols. Each carries distinct meaning regarding system boundaries and actor roles. Below is a detailed look at the primary elements you will encounter.

1. The Actor 👤

An Actor represents a role played by an external entity that interacts with the system. It is typically depicted as a stick figure. In product management, defining actors correctly is the first step in scoping.

• Human Actors: These are real people, such as a Customer, Administrator, or Guest.
• System Actors: These can be other software systems or hardware devices interacting with your product.
• Timing: Actors initiate interactions or receive output. They are the source of the “Use Case”.

Product Manager Insight: Avoid labeling actors with specific job titles that might change. Use functional roles instead (e.g., “Registered User” rather than “John from Marketing”). This ensures the diagram remains valid even as team structures evolve.

2. The Use Case 🔄

A Use Case is an oval shape representing a specific function or goal the system performs. It is a complete unit of functionality from the user’s perspective.

• Naming Convention: Use a verb-noun structure (e.g., “Process Payment,” “Generate Report”).
• Granularity: Keep use cases atomic. If a function can be broken down further, consider if it stands alone as a distinct goal.
• Value: Every use case should deliver value to an actor.

Product Manager Insight: Use cases are the foundation of your feature backlog. Each oval often translates directly into a user story or an epic, depending on the complexity.

3. The System Boundary 📦

The system boundary is a rectangle that encloses the use cases. It clearly defines the scope of the product.

• Inside: Everything within the box is under the control of the system.
• Outside: Everything outside is external, including actors and other systems.
• Labels: The rectangle usually contains the system name.

Product Manager Insight: This is your primary tool for managing scope creep. If a request falls outside the boundary, it is not part of the current system version. This visual distinction helps in saying “no” or “not yet” to feature requests during sprint planning.

Relationships: Connecting the Dots 🔗

Relationships define how actors and use cases interact. Understanding these connections is vital for defining logic flows and dependencies.

1. Association (Communication) ↔️

A solid line connecting an Actor to a Use Case. It indicates that the actor participates in that use case.

• Direction: Often bidirectional, but can be labeled to show who initiates.
• Meaning: The actor can invoke the function.

Product Manager Insight: This is the most basic requirement. If there is no line, the actor cannot perform that action. Ensure every primary user journey has a clear association.

2. Include (Mandatory) ➕

A dashed arrow with an open arrowhead pointing to the included use case. It indicates that the base use case must execute the included use case to complete its function.

• Mandatory: The included behavior happens every time.
• Modularity: It allows you to break complex flows into smaller, reusable pieces.
• Example: “Place Order” includes “Log In”. You cannot place an order without logging in.

Product Manager Insight: Use this to identify shared functionality across multiple features. If “Log In” is included in five different use cases, ensure the authentication logic is robust and consistent across the board.

3. Extend (Optional) 🛠️

A dashed arrow with an open arrowhead pointing to the base use case. It indicates that the extending use case adds behavior to the base use case under specific conditions.

• Optional: The base function works without the extension.
• Conditions: The extension only triggers if a specific condition is met.
• Example: “Process Order” extends with “Apply Discount”. The order processes normally, but the discount only applies if the user is eligible.

Product Manager Insight: This is crucial for defining MVP (Minimum Viable Product) scope versus future enhancements. Treat “Extend” relationships as potential future features or conditional logic that can be deprioritized without breaking the core flow.

4. Generalization (Inheritance) 📉

A solid line with a large triangular arrowhead pointing to the parent. It represents an “is-a” relationship.

• Actors: A “Premium User” is a type of “Registered User”.
• Use Cases: A “Generate Monthly Report” is a type of “Generate Report”.

Product Manager Insight: This helps in understanding access control and permissions. If a general use case is restricted to “Registered Users,” the “Premium User” automatically inherits that capability unless explicitly overridden.

Advanced Elements and Annotations 📝

Beyond the core symbols, diagrams often include additional elements to clarify context.

1. Notes 📌

A rectangle with a folded corner, connected by a dashed line. It provides comments, constraints, or explanations.

• Usage: Clarify complex business rules or data validation requirements.
• Placement: Keep notes close to the element they describe.

2. Packages 📁

A folder icon used to group related use cases. It helps manage complexity in large systems.

• Organization: Group by domain (e.g., “Billing,” “User Management”).
• Clarity: Prevents the diagram from becoming a tangled web of lines.

Practical Application: A Scenario Walkthrough 🚀

To visualize how these symbols work together, consider a typical e-commerce checkout flow. This example demonstrates how a Product Manager might map requirements.

Scenario: Online Purchase

• Actor: Customer.
• System Boundary: E-Commerce Platform.
• Primary Use Case: “Complete Purchase”.
• Include: “Validate Payment Method” (Mandatory).
• Include: “Send Confirmation Email” (Mandatory).
• Extend: “Apply Promo Code” (Optional, if user has a code).
• Generalization: “Guest Checkout” is a generalization of “Customer Checkout”.

In this setup, the Product Manager can clearly see that the core flow relies on payment validation. The promo code is an optional enhancement. The boundary ensures that the email service is treated as part of the system, even if outsourced.

Best Practices for Product Managers 📋

Creating a diagram is easy; creating a useful one is difficult. Follow these guidelines to ensure your diagrams drive value.

• Keep it Simple: Avoid clutter. If a diagram has more than 10-15 use cases, consider splitting it into sub-system diagrams.
• Focus on Goals: Use cases should represent user goals, not system screens. “View Dashboard” is a goal; “Click Button A” is an interaction.
• Validate with Stakeholders: Walk through the diagram with business owners to ensure no critical paths are missed.
• Iterate: As requirements change, update the diagram. It should be a living document.
• Use Consistent Naming: Ensure verbs match across the document (e.g., don’t switch between “Login” and “Sign In”).

Common Mistakes to Avoid ⚠️

Even experienced teams fall into traps when modeling. Be aware of these common pitfalls.

• Over-Engineering: Trying to map every single button click. Remember, Use Case Diagrams are for high-level functionality.
• Confusing Include and Extend: Remember: Include is mandatory, Extend is optional. Swapping them changes the logic of your application.
• Ignoring Actors: Don’t forget internal actors or external systems that trigger functions.
• Static Boundaries: Failing to recognize when the system boundary needs to expand as the product grows.
• Lack of Context: Creating a diagram without defining the scope. A “Login” use case looks different for a mobile app versus a web admin panel.

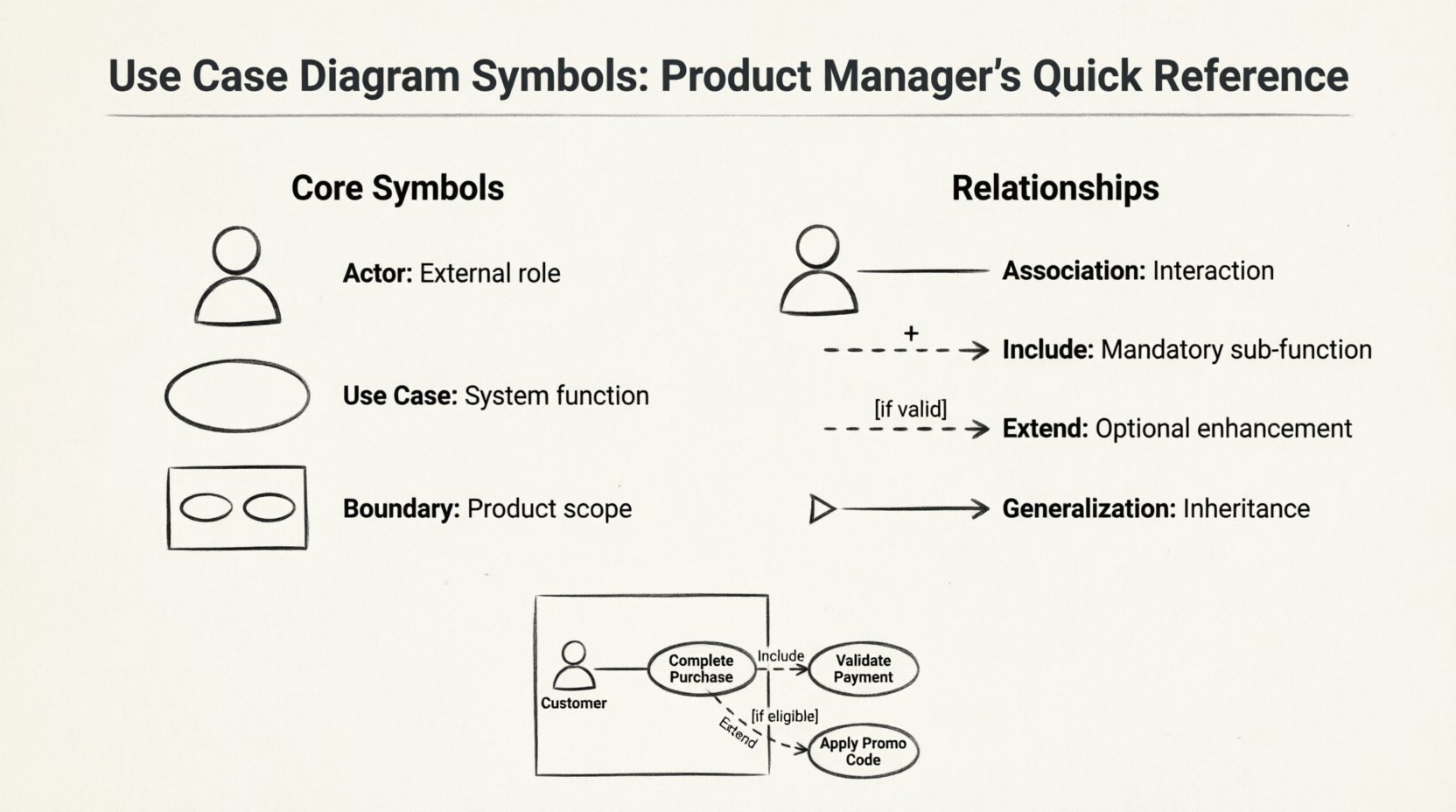

Summary of Symbols and Meanings 📊

Refer to this table for a quick lookup during your planning sessions.

Symbol	Name	Meaning	Product Manager Focus
👤 Stick Figure	Actor	External entity interacting with the system	Identify user roles and permissions
🔵 Oval	Use Case	Specific function or goal	Define features and user stories
📦 Rectangle	System Boundary	Scope of the product	Manage scope creep and boundaries
↔️ Solid Line	Association	Interaction between Actor and Use Case	Map user journeys
➕ Dashed Arrow	Include	Mandatory sub-function	Identify shared dependencies
🛠️ Dashed Arrow	Extend	Optional sub-function	Identify future enhancements
📉 Triangle Arrow	Generalization	Inheritance relationship	Handle permissions and variants
📌 Folded Corner	Note	Comment or constraint	Clarify business rules

Integrating Diagrams into Your Workflow 🔄

How do you take these symbols and put them into practice? The integration happens during the discovery and planning phases.

• Discovery Phase: Use actors and use cases to brainstorm with stakeholders. Ask: “Who is involved? What do they want to achieve?”
• Planning Phase: Map the Include/Extend relationships to understand dependencies. This helps in sequencing sprints.
• Development Phase: Engineers use the diagram to understand the logical flow without needing detailed UI mocks.
• QA Phase: Testers use the associations to create test cases. Every line represents a potential test scenario.

By treating the diagram as a contract between business and engineering, you reduce ambiguity. When a developer asks, “Does this feature require authentication?” you can point to the Include relationship and provide a definitive answer.

Final Considerations for Effective Modeling 🎓

Mastering the visual language of requirements is a skill that pays dividends over time. It shifts your focus from managing tasks to managing value. By accurately representing actors, boundaries, and relationships, you create a blueprint that withstands the pressure of changing requirements.

Remember that the goal is clarity, not complexity. If a diagram confuses a stakeholder, it has failed its purpose. Simplify. Iterate. Validate. The symbols are tools to facilitate conversation, not the conversation itself.

As you move forward, keep this reference handy. Whether you are defining a new feature set or refactoring an existing system, a clear Use Case Diagram will serve as your anchor. It ensures that every line of code written aligns with the user’s intent and the product’s strategic goals. Start mapping, start clarifying, and start building with precision.
